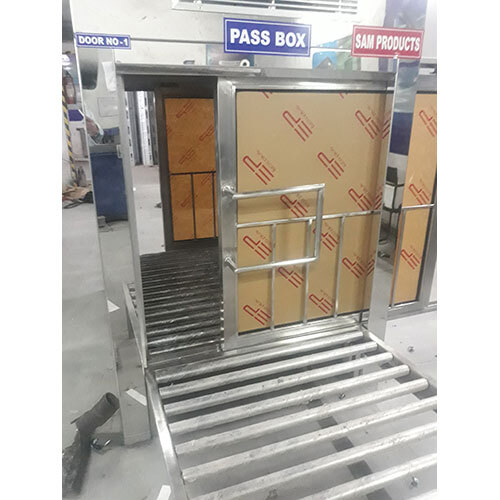

Mild Steel SS 304 Dynamic Pass Box (Metallic)

Get a Price/Quote

MOQ : 1 Piece

Mild Steel SS 304 Dynamic Pass Box (Metallic) Specification

Voltage
230 V AC, 50 Hz

Filter Type
HEPA (99.97% efficiency at 0.3 micron)

Floor
Stainless Steel grated floor

Door
Double door with interlocking mechanism

Filters
Pre-filter and HEPA filter

Weight
Approximately 60-80 kg

Thickness
1.2 mm to 1.5 mm (Approximate, as per industry standards)

Lighting
Fluorescent/LED light inside chamber

Air Flow
HEPA filtered, unidirectional

Frame Material
SS 304

Condition
New

Application
Industrial

Type
Pass Box

Feature
Good Quality

Air Volume
Approx. 800 - 1200 m3/hr

Material
Stainless steel

Power Consumption
40 - 60 W

Nozzle
Adjustable air nozzles for uniform cleaning

Dimension (L*W*H)
600 mm x 600 mm x 600 mm (customizable)

Gasket
Silicone / Neoprene gasket for airtight closure

Timer Function
Digital timer for operation cycle

Viewing Window
Toughened transparent glass

Installation Type
Floor Mounted

Support
Heavy-duty legs for stability

Noise Level
< 65 dB(A)

Controls
Microprocessor-based controller

Safety Features
Door Indicator, Alarm, Emergency Stop

Finish
Matt / Mirror finish available

UV Lamp
Optional UV germicidal lamp

Operating Mode
Automatic / Manual

Mild Steel SS 304 Dynamic Pass Box (Metallic) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
2-3 Week

Mild Steel SS 304 Dynamic Pass Box (Metallic) About

Get exceptional cleanliness and control for your critical operations with our Mild Steel SS 304 Dynamic Pass Box (Metallic). Now on clearance for top value, this masterful pass box boasts a robust stainless steel frame and a noise level below 65 dB(A) for tranquil operation. Featuring a toughened transparent glass viewing window, microprocessor controls, and a digital timer, it supports both manual and automatic modes. The airtight silicone/neoprene gasket and HEPA filters ensure unidirectional, contaminate-free airflow. Installation is hassle-free with floor mounting and heavy-duty legs, and safety features like door locks, alarms, and emergency stops provide terrific peace of mind. Ideal for distributors, exporters, manufacturers, and service providers.

Industrial-Grade Versatility for Cleanroom Applications

The Mild Steel SS 304 Dynamic Pass Box (Metallic) is specifically engineered for rigorous industrial use, serving as a reliable interface for transferring materials without cross-contamination. With both automatic and manual operating modes, this pass box is perfect for pharmaceutical, biotech, and electronics environments where particle control and hygiene are paramount. The combination of toughened glass viewing, dual interlocking doors, and HEPA filtration ensures every transfer meets exceptional standards of sterility and safety.

Market Value, Delivery Assured, and Certified Excellence

This pass box offers terrific market value and is suitable for export to major industrial hubs worldwide. Delivery options are fast and flexible, with careful freight handling to ensure pristine arrival. Our product meets rigorous certification and compliance standards, reflecting our commitment to superior quality. As a trusted supplier in India's dynamic export market, we're proud to support your projects with prompt dispatch, robust warranties, and after-sales service for complete satisfaction.

FAQ's of Mild Steel SS 304 Dynamic Pass Box (Metallic):

Q: How does the Mild Steel SS 304 Dynamic Pass Box ensure a contaminant-free transfer process?

A: This dynamic pass box uses unidirectional HEPA filtered airflow combined with pre-filters and airtight gaskets to maintain sterile conditions during the transfer of materials between cleanroom zones.

Q: What controls and safety features are included with this pass box?

A: It features a microprocessor-based controller, digital timer, door interlocking mechanism, door status indicators, alarms, and an emergency stop to ensure exceptional operational safety and process control.

Q: Where can the Mild Steel SS 304 Dynamic Pass Box be used?

A: This pass box is ideal for use in pharmaceutical, biotechnology, electronics, and industrial environments requiring controlled, contamination-free transfer of equipment or material.

Q: What are the main benefits of using this pass box in industrial applications?

A: The pass box offers superior contamination control, customizable dimensions, heavy-duty stability, noise reduction, and reliable safety mechanisms, optimizing workflow and ensuring product quality.

Q: When can customers expect delivery, and what markets does this product serve?

A: Delivery times are swift and adaptable, with prompt freight services to domestic and international industrial markets. The pass box is popular among distributors, exporters, and manufacturers due to its certified quality and robust market value.
