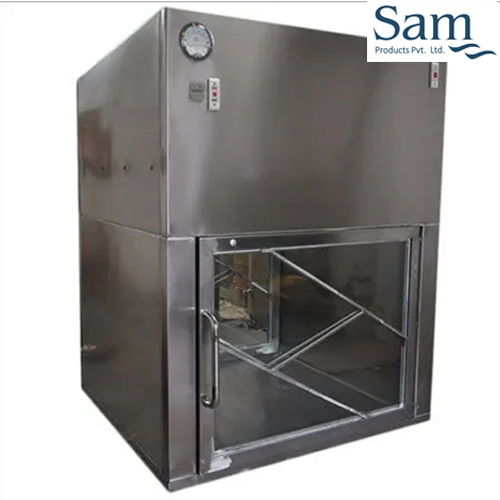

Stainless Steel Easy to Operate Pass Box
Product Details:
- Condition New
- Air Volume 350 CFM
- Air Flow Laminar
- Weight Approx. 40 kg
- Floor Stainless Steel, Matt Finish
- Filters HEPA Filter
- Dimension (L*W*H) 600 mm x 600 mm x 600 mm
- Click to View more
X
Stainless Steel Easy to Operate Pass Box Price And Quantity
- 1 Unit
- 5 mm Toughened
- <65 dB
- Floor Mounted
- Stainless Steel 304, Powder Coated
- EPDM / Silicon
- Plug and Play
- Matt/Glossy Finish
- Available as per requirement
- Manual
- Removable for Maintenance
- Optional
Stainless Steel Easy to Operate Pass Box Product Specifications
- Double Door, Glass View Panel, Interlocking System
- 50 W
- Stainless Steel 304
- LED Light 5W
- Stainless Steel
- Static Pass Box
- Mini Pleat HEPA (99.99% at 0.3 micron)
- Pharmaceutical, Laboratory, Clean Room
- Laminar
- Approx. 40 kg
- Stainless Steel, Matt Finish
- HEPA Filter
- New
- 350 CFM
- 230 V AC
- 600 mm x 600 mm x 600 mm
- 1.2 mm
- Electromagnetic Interlocking, Door Indicator, Easy to Clean
- SS Nozzle with Perforated Grill
- 5 mm Toughened
- <65 dB
- Floor Mounted
- Stainless Steel 304, Powder Coated
- EPDM / Silicon
- Plug and Play
- Matt/Glossy Finish
- Available as per requirement
- Manual
- Removable for Maintenance
- Optional
Stainless Steel Easy to Operate Pass Box Trade Information
- Noida - Uttar Pradesh
- 10 Unit Per Month
- 1 Days
- Yes
- Contact us for information regarding our sample policy
- Standard Packaging
- Uttar Pradesh
- ISO 9001:2015
Product Description

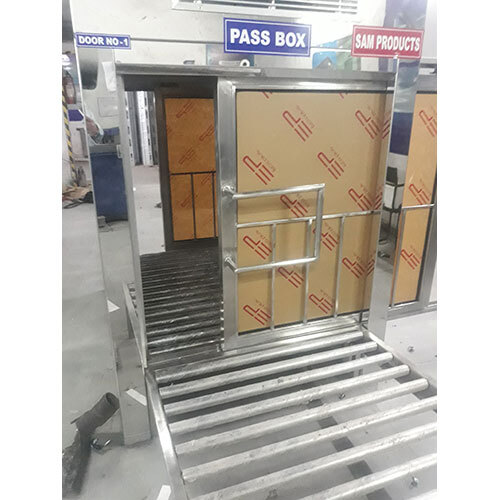

We have an unmatched place in the market for manufacturing & supplying optimal quality Mild Steel Pass Box. It is used for the transportation of material from clean room, or into the clean room in a hassle-free manner. The box is manufactured by using high-grade components and proven methods under effective supervision of our expert professionals. We make available the Stainless Steel Pass Box at reasonable price.
Our company has created a reliable name in the market by manufacturing and supplying quality assured pass box. This product is designed to tranfer material from one clean room to another or areas that are non sterile, without even disturbing the environment. Stainless steel or galvanized steel of varied grades are employed in the fabrication of this product. The customers based on their requirements can choose between pass box with or without air flow. It can have option for automatic opening and closing windows. It might also be fitted with conveyor to transfer material. Other accessories that can be availed with this product are Ultra Violet Light, Lamps, Audio, Video, Alarms, etc. It can be made to suit a specific requirement. The buyers can choose between Two Door or Three Door.
- Sliding Door or Hinged Door.
- Wall Mounted or Floor Mounted.
- Blanked or View Glass.
- Microprocessor to control Electronic Interlocking
Features ofMild Steel Pass Box:
- Excellent performance
- Easy to operate
- Dependable mechanical interlock
- Sturdy construction
- Low power consumption
Robust Construction and Premium Materials
Built entirely from stainless steel 304 and finished with either a matt or glossy powder coat, this pass box is engineered for long-lasting durability. The 5 mm toughened glass and removable service door facilitate cleaning and maintenance. The plug-and-play design and floor-mounted configuration make it a reliable solution for sensitive environments like laboratories and clean rooms.
Advanced Control and Operational Safety
The integrated microprocessor-based control panel ensures seamless performance with features such as electromagnetic interlocking and door indicator lights for enhanced operation safety. The manual operation allows for easy use, while the EPDM or silicon gaskets provide superior sealing and contamination prevention.
Superior Air Filtration and Noise Control
The pass box operates with a mini pleat HEPA filter (99.99% efficiency at 0.3 micron) and delivers 350 CFM of laminar airflow, effectively maintaining a contaminant-free environment. With a noise level below 65 dB, it ensures a quiet and efficient working experience, supporting critical applications in pharmaceutical and laboratory settings.
FAQs of Stainless Steel Pass Box:
Q: How does the electromagnetic interlocking system enhance operational safety?
A: The electromagnetic interlocking mechanism prevents both doors from being opened simultaneously, ensuring contamination is minimized during the transfer process. This feature safeguards clean room integrity and enhances personnel safety.Q: What is the installation process for the pass box?
A: Installation is straightforward with its plug-and-play design. The floor-mounted structure requires only a suitable power connection (230 V AC), enabling quick setup in pharmaceutical, laboratory, or clean room environments.Q: When should the HEPA filter be replaced or maintained?
A: It is recommended to check and maintain the HEPA filter regularly, depending on usage intensity and environmental conditions. Replacement schedules can typically range from 6 months to a year to maintain optimal filtration efficiency.Q: Where can this stainless steel pass box be effectively used?
A: This pass box is ideal for use in pharmaceutical manufacturing, laboratories, research facilities, and other controlled environments that demand stringent contamination control and easy transfer of materials between rooms.Q: What benefits does the microprocessor-based control panel provide?
A: The microprocessor-based control panel automates and streamlines operational controls, monitors door status, manages electromagnetic locks, and allows for efficient user interface and safety adherence during transfers.Q: How can the pass box be customized to specific requirements?
A: Customization is available for dimensions, finish, gasket types, lighting, and additional features such as UV light. Customers can specify requirements to tailor the pass box to their facilitys exact needs.Tell us about your requirement
